Type “Top Loading”

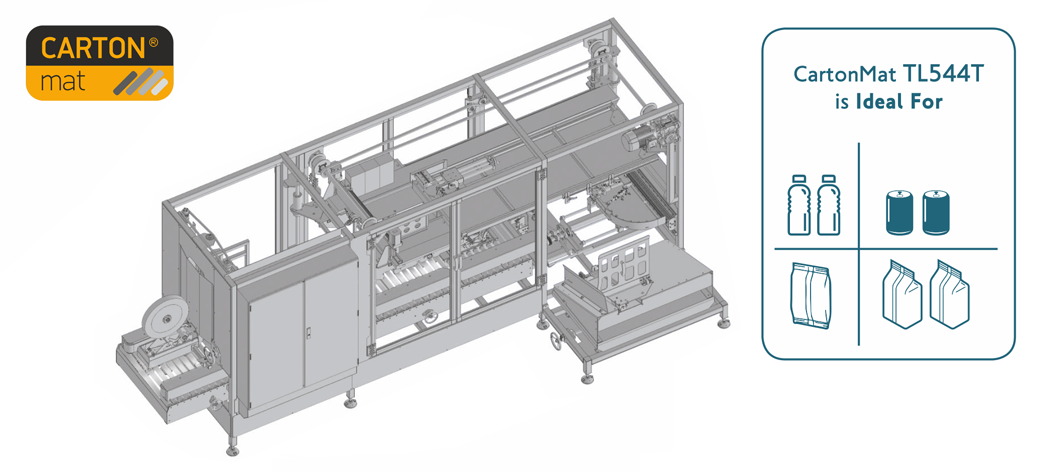

CartonMat TL544T is a monoblock case packer that receives singulated products from the production line, groups them according to a predefined pattern and then top loads them into RSC cartons. It is a “3 in 1” product (carton forming, packing and sealing) ensuring fully automatic operation of the machine and the minimum required footprint. With the use of servo, it ensures high speed and precise product handling while its design makes it ideal for production areas with limited available space.

CartonMat TL544T is IoT ready and incorporates the latest technologies of Industry 4.0.

Watch the videos:



Benefits:

  • Reliability / Safety / Minimum Maintenance
    CartonMat TL544T incorporates our 30 years of engineering excellence and combines intelligent design, top quality materials and robust construction, providing high productivity and minimum downtime and maintenance requirements.
  • Flexibility / Productivity Assurance / Minimized Operational Cost
    CartonMat TL544T is designed to handle various predefined products with quick changeovers. It secures maximum productivity and the reduction of operational costs.
  • Upgradability
    CartonMat TL544T can easily be upgraded to cover new requirements, such as new products and patterns, checkweighing, QC, etc.

Technical Specifications - Download pdf

PERFOMANCE
Productivity max 12 cycles per minute
Operation Fully automatic, Cycle, Manual
Changeovers max 10 min
Handled products Pet bottles, Cartons, Cans, Flat Bottom Bags, Pillow Bags
Carton hopper capacity 500 mm
CASES TYPES & DIMENSIONS
Minimum Case Size (LxWxH) 250 x 200 x 100 mm
Maximum Case Size (LxWxH) 500 x 400 x 400 mm
Case Type RSC
MACHINE DESIGN
Overall Dimensions (LxWxH) 4,600 x 1,800 x 2,000 mm
Infeed Conveyor Chain or Modular Conveyor Belt, Height (1200 ± 30 mm)
Outfeed Conveyor Chain or Roller Conveyor, Height (650 ± 30 mm)
CONTROL
PLC Siemens S7-300
HMI Siemens KTP-700
Servo & Pneumatics FESTO
SAFETY
Safety System Double Emergency Stop circuit, Door Interlocks, CE Certification
SUPPLY REQUIREMENTS
Power Supply 3 x 32A / 400V - 50 Hz (3P + N + GND)
Air Supply 6 Bar
WARRANTY
Full Coverage Warranty 1 Year - Unlimited Cycles
Optional Features
Carton Hopper Extended Motorized hopper
Remote Maintenance Teleservice
Execution Material Stainless steel frame or components
Sealing Method Nordson Hot melt glue for case sealing instead of adhesive tape
