Type: “Pick & Place”

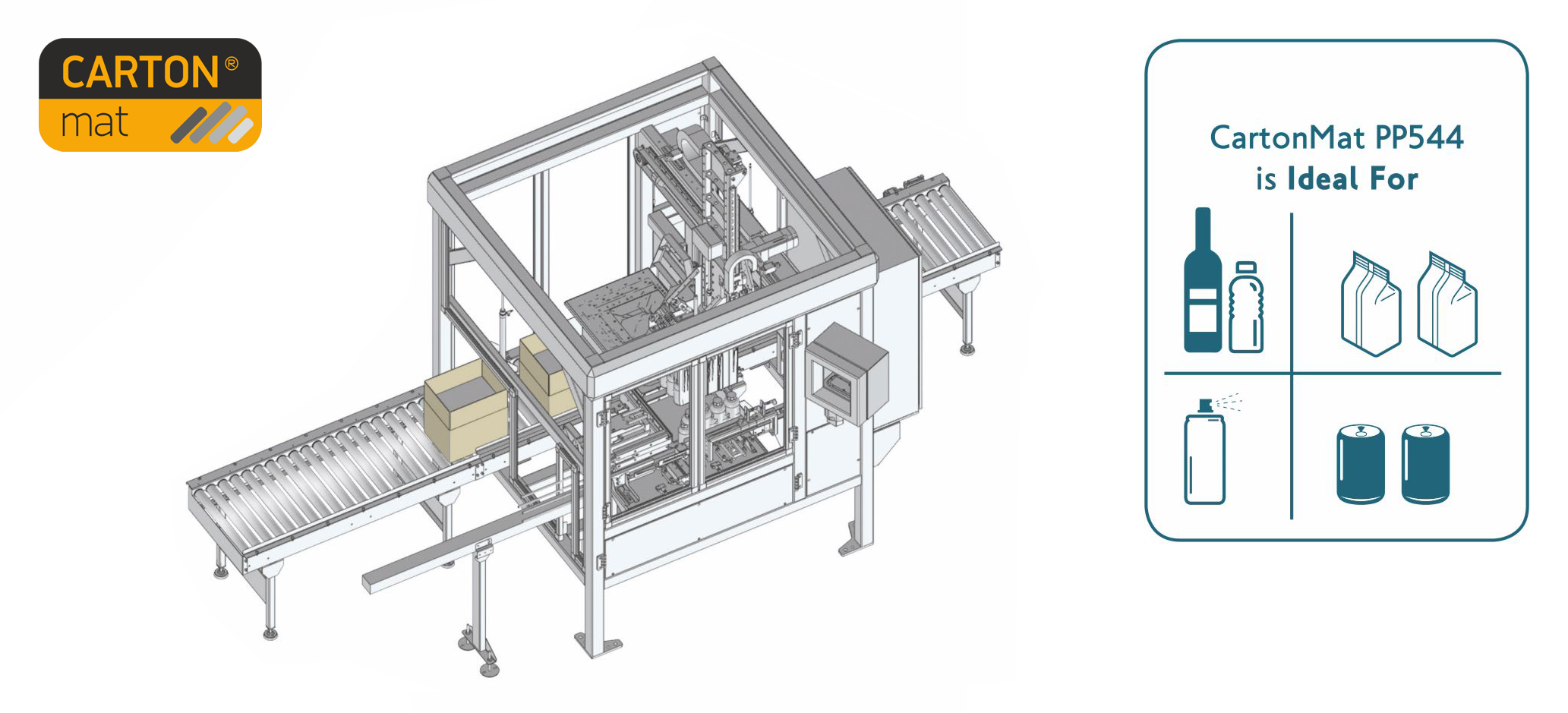

CartonMat PP544 is a standalone Pick & Place case packing system. It receives products directly from the production line, groups them according to a predefined pattern, picks them with a specially designed gripper and top loads them into cases. It can be combined with an external case forming machine and case sealer to provide a complete case packing solution. It features two servo axes and state-of-the-art gripper technology (mechanical, vacuum, magnetic or combination) which ensure high speed, fast changeovers and precise product handling. Its modular design makes it ideal for sites with limited available space.

CartonMat PP544 is IoT ready and incorporates the latest technologies of Industry 4.0.

Watch the video:

Benefits:

  • Reliability / Safety / Minimum Maintenance
    CartonMat PP544 incorporates our 30 years of engineering excellence and combines intelligent design, top quality materials and robust construction, providing high productivity and minimum downtime and maintenance requirements.
  • Flexibility / Productivity Assurance / Minimized Operational Cost
    CartonMat PP544 is designed to handle various predefined products with quick changeovers. It secures maximum productivity and the reduction of operational costs.
  • Upgradability
    CartonMat PP544 can easily be upgraded to cover new requirements, such as new products and patterns, checkweighing, QC, etc.

Technical Specifications - Download pdf

PERFOMANCE
Productivity max 10 cycles per minute
Operation Fully automatic, Cycle, Manual
Changeovers max 10 min
Handled products Pet bottles, Glass bottles, Cartons, Cans, Aerosols, Flat bottom bags
CASES TYPES & DIMENSIONS
Minimum Case Size (LxWxH) 250 x 200 x 100 mm
Maximum Case Size (LxWxH) 500 x 400 x 400 mm
Case Type RSC Carton, Display, Tray, Crate
MACHINE DESIGN
Overall Dimensions (LxWxH) 3,500 x 2,000 x 2,600 mm (including infeed & outfeed conveyors)
Infeed Conveyor Chain or Modular Conveyor Belt, Height (Products) 900 ± 30 mm
Outfeed Conveyor Roller Conveyor, Height (Cartons) 700 ± 30 mm
CONTROL
PLC Siemens S7-300
HMI Siemens KTP-700
Servo & Pneumatics FESTO
SAFETY
Safety System Double Emergency Stop circuit, Door Interlocks, CE Certification
SUPPLY REQUIREMENTS
Power Supply 3 x 32A / 400V - 50 Hz (3P + N + GND)
Air Supply 6 Bar
WARRANTY
Full Coverage Warranty 1 Year - Unlimited Cycles
