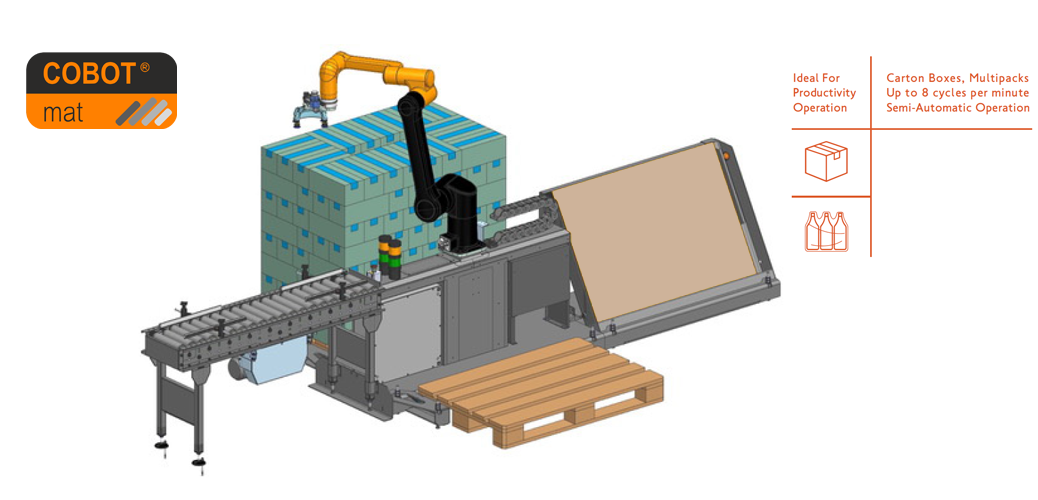

CobotMat CP-11 is a Plug & Play Collaborative Palletizer that receives products directly from the production line and palletizes them according to pre-defined patterns. CobotMat is compact & versatile whilst its advanced safety features allow for safe & efficient collaboration with humans in the same working space.

With the use of a Cobotic arm from leading Korean manufacturer HANWHA, it ensures high speed and precise product handling while its compact design makes it ideal for sites with limited available space.

The “Plug & Play” features of CobotMat make its integration to the line extremely easy. Non-specialized personnel can install, commission and even move the system to different factory lines or program new products or palletising patterns.

Due to its compact design and very fast ROI, CobotMat CP -11 is ideal for small-to-medium productions and sites with limited available space, such as Pharma, Snacks, Coffee, Plastics, etc.

An IoT ready system incorporating the latest technologies of Industry 4.0.

Watch the videos:







Benefits:

  • Safety / Human Collaboration
    Its advanced safety features meeting ISO 138849-1 standards allow safe & efficient collaboration with humans in the same workspace.
  • Fast & Easy / Flexibility / Upgradeability
    It is extremely Fast & Easy to install and commission CobotMat CP-11 on existing lines. New products or patterns may be programmed very fast and the system can even be moved between lines. Moreover, the system can be upgraded to cover increased productivity, taller pallets and interlayer sheet.
  • Reliability / Minimum Maintenance
    CobotMat Series incorporates our 30 years of engineering excellence and combines intelligent design, top quality materials and robust construction, providing increased productivity, high precision, minimum downtime and very low maintenance requirements.
  • Fast ROI
    The return on investment for CobotMat is extremely fast making robotic automation a “no brainer” to even sites with small productions. productivity, higher pallets, interlayer sheet, etc.

Technical Specifications - Download pdf

SCOPE, PERFORMANCE & OPERATION
Collaboration Yes - Safe collaboration with humans in the same working space
Handled Products Carton Boxes, Multipacks
Productivity Max 4 cycles per minute; option 8 cycles
Operation Semi-automatic
Palletizing Positions Dual Pallet on Floor– alternative; one active
PRODUCTS & PALLET TYPES & DIMENSIONS
Minimum Product Size (LxWxH) 230 x 130 x 100 mm
Maximum Product Size (LxWxH) 600 x 400 x 400 mm
Maximum Product Weight 10.5 kg
Pallet Type EUR & CHEP
Maximum Load Height 1100mm, option 1800mm
Moveable Yes; By Electric & Manual Pallet Truck or Forklift
MACHINE DESIGN
Packed Dimensions (LxWxH) 1,610 x 1,300 x 1,500 mm
Working Dimensions (LxWxH) 1,600 x 2,238 x 2,000 mm / For CHEP +400mm (W); For Lift +900mm (H)
Infeed conveyor (LxH) Roller Conveyor 1500 (L) mm x 451 (W) mm
Approx. Weight 300 kg, forklift movable
Standard Robotic Arm Hanwha 12kg
Gripper Operation Vacuum
CONTROL | CONNECTIVITY

Robot Software HCR Rodi
Connectivity ModBus TCP; EtherCat provided for Tool Communication
SAFETY
Safety System ISO 138849-1 Category 3 PLd Standards; CE Certification; May work alongside human workers
SUPPLY REQUIREMENTS
Power & Air Supply 230VAC – Compressed oil free air
WARRANTY
Full Coverage Warranty 1 Year - Unlimited Cycles
OPTIONAL FEATURES
Increased Speed Up to 8 cycles per min
Increased Pallet Height Up to 1,800 mm
Interlayer Sheet Automatic carton interlayer placement
Pick Conveyor Belt or Modular Belt; 90° Left / Right; Alternative dimensions
Multi-pick Option For increased productivity
Automatic Pallet Handling Automatic Pallet Handling by Mobile Robots
